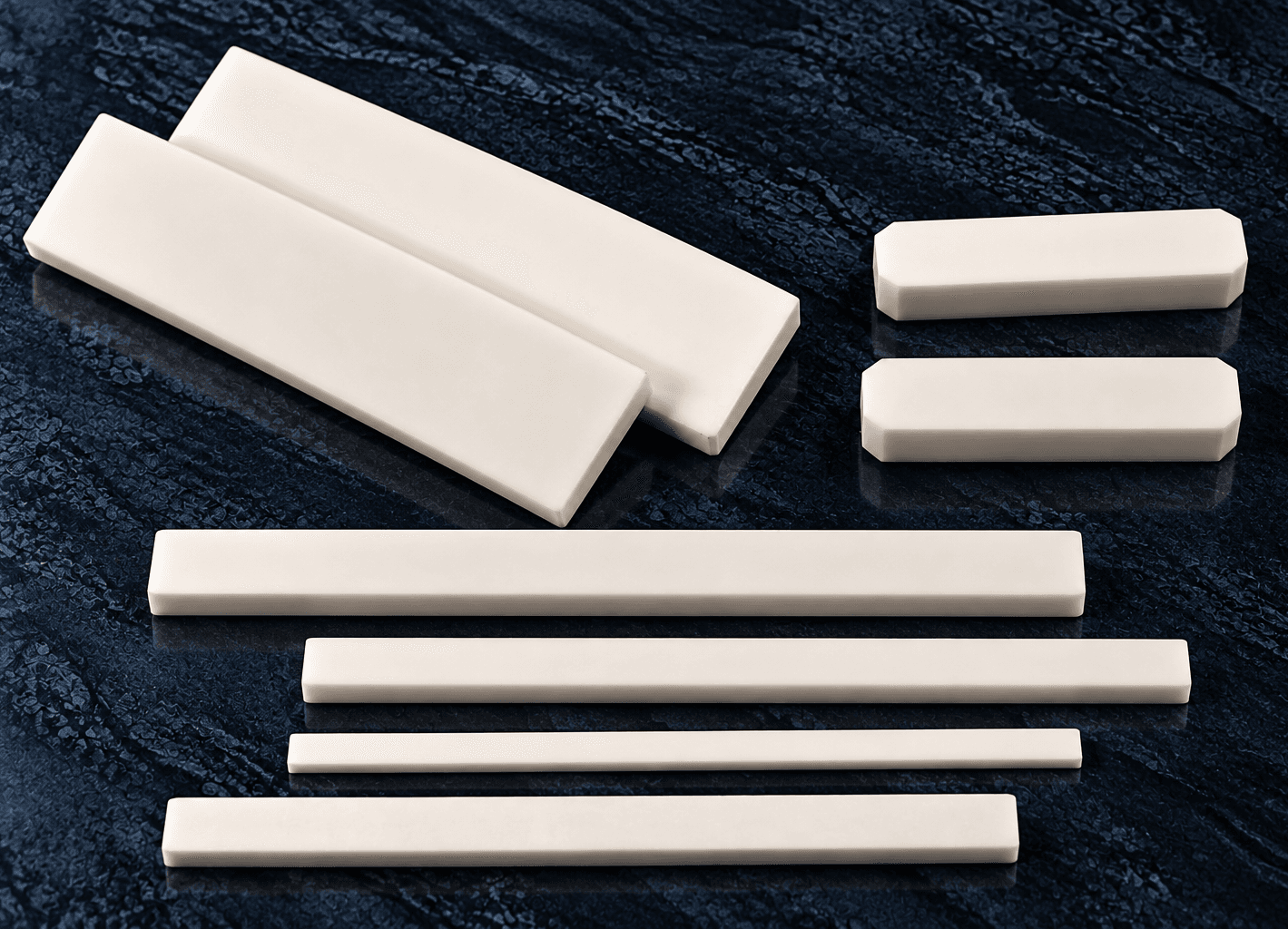

Zirconia Ceramic
Tough, Wear-Resistant Ceramic
Zirconia (Zirconium Dioxide, ZrO₂) is an advanced technical ceramic known for its exceptional fracture toughness, extreme wear resistance, thermal stability and ability to withstand high mechanical stress.
It is selected when components must survive high stress, impact, or cyclic loading conditions where other ceramics may fail.
It’s often chosen when components must:
- Resist fracture under high mechanical stress or impact loads
- Maintain performance in severe wear and abrasive environments
- Withstand thermal cycling and mechanical fatigue
- Replace metals in high-load, corrosion-prone systems
- Deliver long service life in demanding mechanical assemblies
Important: Key advantage:
Zirconia offers one of the highest fracture toughness levels among engineering ceramics.
Key Properties of Zirconia Ceramic
Zirconia is a polycrystalline ceramic stabilized with yttria or magnesia to improve structural performance.
Core properties:
- Extremely high fracture toughness for a ceramic material
- Excellent wear and abrasion resistance
- High flexural strength compared to most ceramics
- Good thermal insulation properties
- Strong resistance to crack propagation
- Excellent chemical resistance
Common zirconia grades:
- YTZP (Yttria-stabilized zirconia) – high strength and toughness
- Mg-PSZ – thermal shock and high-load applications
- Partially stabilized zirconia – structural and wear components
Zirconia Ceramic Technical Specifications
| Property | Typical Range |
|---|---|
| Composition | ZrO₂ (stabilized) |
| Density | 5.9–6.1 g/cm³ |
| Hardness | ~1200–1400 HV |
| Flexural Strength | 800–1200 MPa |
| Compressive Strength | 2000+ MPa |
| Max Operating Temperature | ~1000–1400°C |
| Thermal Conductivity | Low |
| Thermal Expansion | Moderate |
Zirconia Ceramic Applications by Function
Zirconia is used where mechanical durability and fracture resistance are crucial:
- Wear-resistant bearings and bushings
- Precision shafts and guides
- Valve components and pump parts
- Cutting and grinding tools
- Medical and dental components
- Industrial machinery wear systems
Custom Zirconia Components We Manufacture
Associated Ceramics produces precision zirconia parts including:
- Structural wear components
- Precision-machined rods and shafts
- Valve seats and seals
- Pump components
- High-wear industrial inserts
- Custom engineered geometries
Industries That Rely on Zirconia Ceramic
At Associated Ceramics, we manufacture precision zirconia components for demanding industries where durability under load and resistance to cracking are critical:
- Industrial machinery and automation
- Medical and dental technology
- Aerospace and defense systems
- Chemical processing equipment
- Energy and heavy engineering systems
Frequently Asked Questions About Zirconia Ceramic
What is zirconia ceramic used for?
Zirconia is used for high-wear, high-strength components requiring fracture resistance.
Is zirconia stronger than alumina?
Yes. Zirconia generally offers higher fracture toughness and flexural strength.
Can zirconia handle high temperatures?
Yes, but it has lower maximum temperature capability than alumina or silicon nitride.
What industries use zirconia?
Medical, industrial machinery, aerospace, and chemical processing industries commonly use zirconia.
Ready to Discuss Your Application?
Whether you're developing a new component, searching for a better supplier, or scaling an existing design into production, our engineers are ready to help.
