Electrical Element Supports
Keeping Heating Elements Stable in High-Temperature Environments
Heating element failure is often caused not by the element itself, but by movement, sagging, electrical shorting, or thermal expansion within the assembly.
Associated Ceramics manufactures precision ceramic element supports that maintain spacing, alignment, and electrical isolation in applications exposed to continuous heat, thermal cycling, and demanding operating conditions.
Extensive Selection of Electrical Element Supports
Associated Ceramics carries an extensive line of ceramic electrical element supports designed to meet the needs of industrial furnaces, heating systems, and thermal processing equipment.
Because we manufacture such a wide variety of support geometries, sizes, and configurations, many common electrical element supports are already in production and may be available from existing inventory or tooling. This can significantly reduce lead times and accelerate replacement schedules, maintenance projects, and new equipment production.
When a standard configuration isn't the right fit, our engineering team can work with you to modify an existing design or develop a custom solution tailored to your application requirements.
Our electrical element support capabilities include:
- Extensive catalog of support styles, sizes, and configurations
- Existing tooling for many common industrial furnace applications
- Custom geometries and mounting configurations available
- Material options optimized for temperature resistance, electrical insulation, and thermal shock performance
- Prototype through high-volume production capabilities
- Engineering support for design optimization and material selection
Looking for a replacement electrical element support?
There's a good chance we already manufacture it. Contact our team today to discuss your application or available inventory.
Why Manufacturers Choose Ceramic Element Supports
- Maintain electrical isolation in high-temperature environments
- Resist deformation and thermal expansion that can occur with metal supports
- Withstand repeated heating and cooling cycles without degradation
- Provide long-term dimensional stability under continuous thermal loads
- Available in multiple engineered ceramic materials to match application requirements
Looking to solve a specific performance requirement? We can help.
Common Applications for Electrical Element Supports
Electrical element supports are commonly used in applications including:
- Industrial furnaces
- Ovens and kilns
- Process heating equipment
- Gas ignition systems
- Heat treatment equipment
- Commercial cooking equipment
- Electric heaters
- Thermal processing systems
- Appliance heating assemblies
Common Materials for Electrical Element Supports
Material selection depends on operating temperature, thermal cycling conditions, electrical requirements, and mechanical loading.

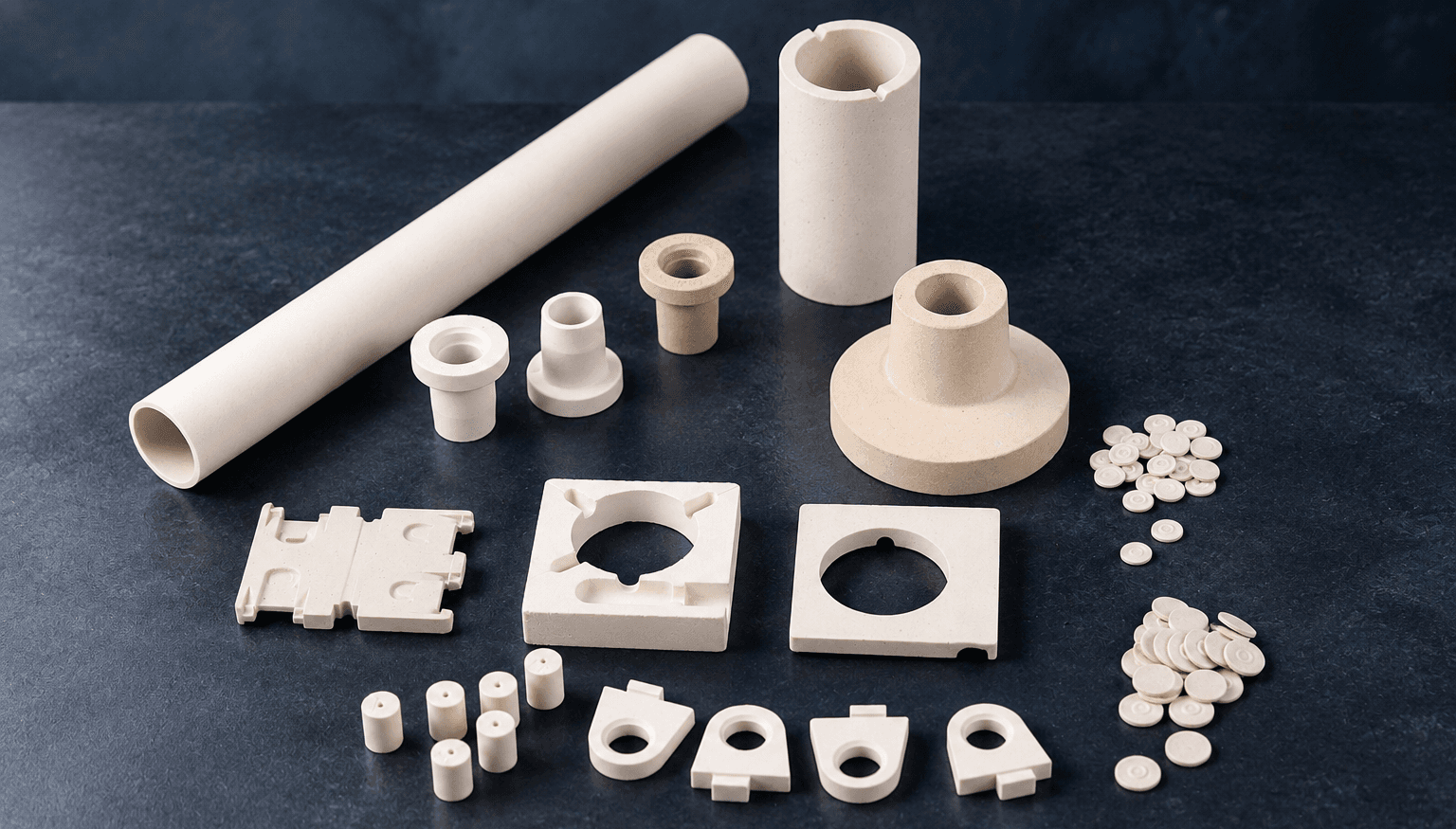

Cordierite
Cordierite is one of the most common materials used for electrical element supports due to its exceptional thermal shock resistance and low thermal expansion characteristics. It performs particularly well in applications involving rapid heating and cooling cycles.
Common cordierite element supports include:
- Heating element support rods
- Grooved heater supports
- Furnace support components
- Kiln heating element fixtures
- Thermal processing supports

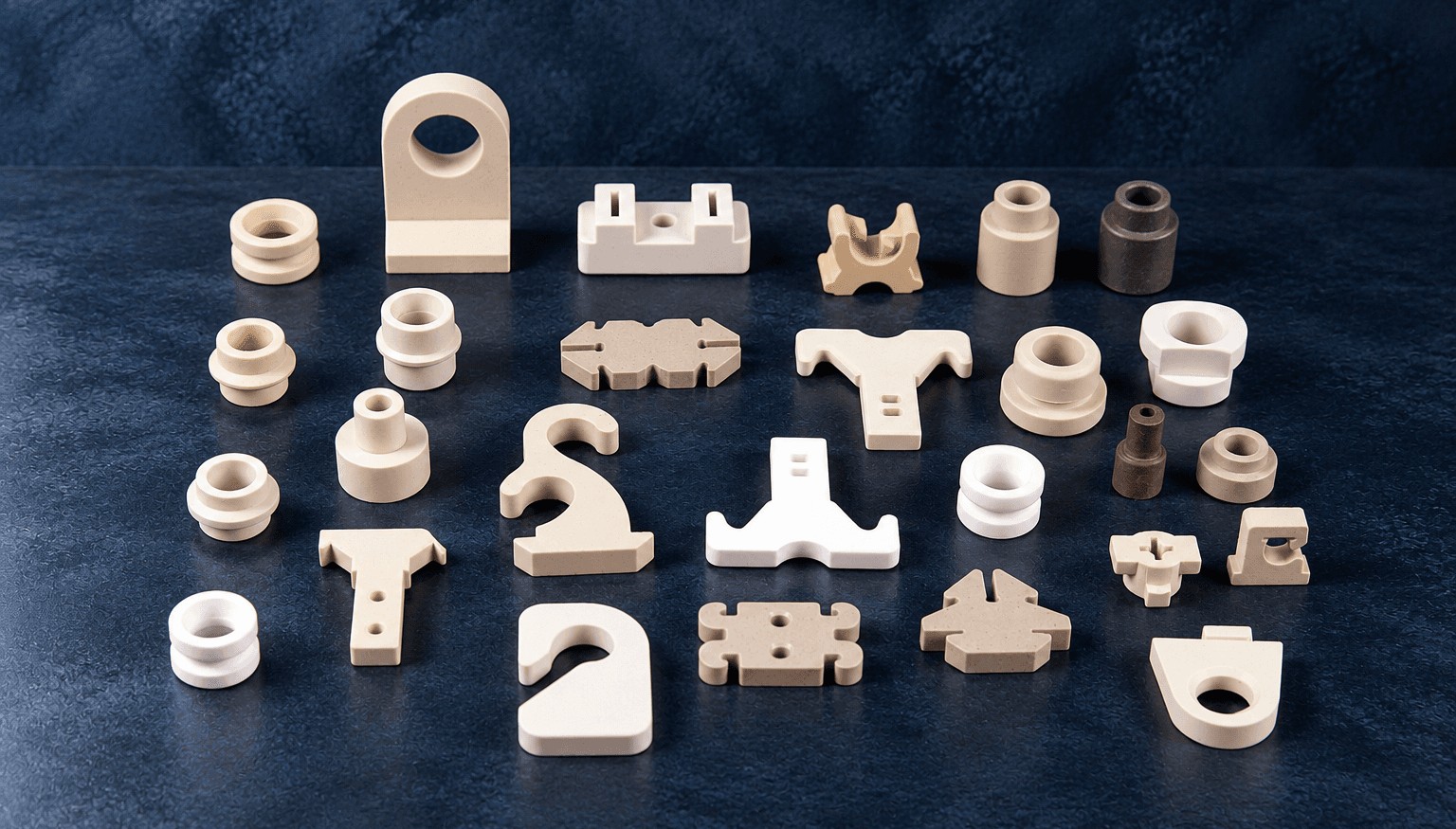

Steatite
Steatite combines excellent electrical insulation properties with strong thermal performance, making it a popular choice for lower and moderate temperature electrical heating applications.
Common steatite element supports include:
- Heater bead supports
- Electrical terminal supports
- Appliance heating element supports
- Ceramic spacers
- Insulating mounting components

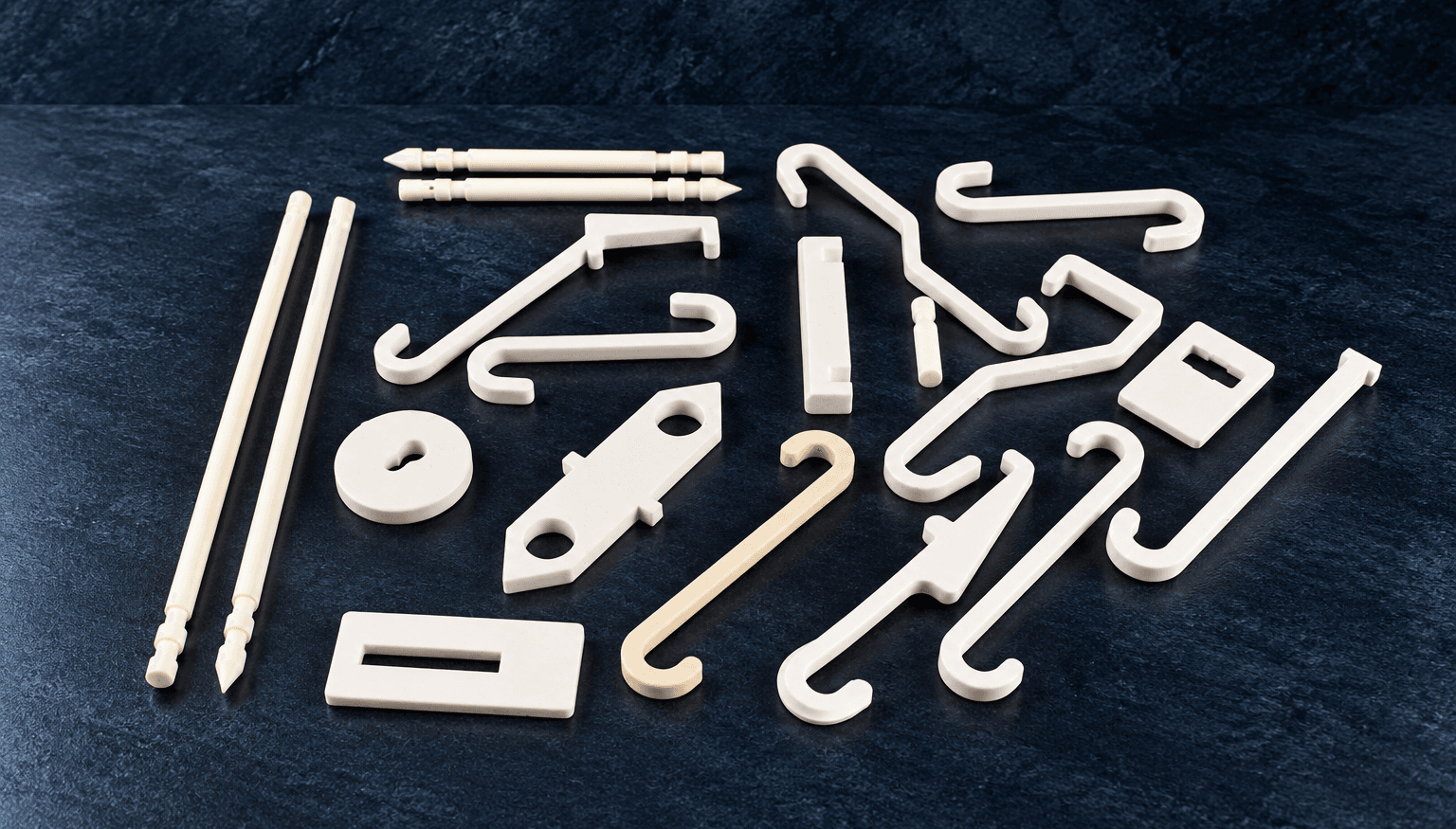

Alumina
For applications involving higher temperatures, increased mechanical loading, or more aggressive operating environments, alumina provides superior strength, wear resistance, and long-term durability.
Common alumina element supports include:
- High-temperature support rods
- Structural heater supports
- Furnace insulation supports
- Process heating fixtures
- Wear-resistant support components
Industries Commonly Served
Associated Ceramics manufactures electrical element supports for manufacturers operating in demanding environments including:
- Appliance Manufacturing
- Industrial Heating Equipment
- Electronics Manufacturing
- Transportation
- Energy and Infrastructure
- Medical Equipment
- Industrial Processing
Don't see your industry listed?
Many of our customers operate in highly specialized markets with unique operating requirements. If your application requires electrical insulation, temperature resistance, or long-term dimensional stability, there is a strong possibility we can help.
Why Associated Ceramics
Manufacturers choose Associated Ceramics because they need more than a component supplier — they need an engineering and manufacturing partner capable of delivering consistent quality at scale.
- Over 290 million ceramic components manufactured in 2024-2025
- Capacity to produce more than 1.5 million parts per day
- More than 155 production presses ranging from 2 to 250 tons
- Complete engineering support including ceramic engineers, manufacturing engineers, and tooling designers
- On-site laboratory and testing capabilities
- ISO 9001:2015 certified manufacturing processes
- Two U.S. manufacturing facilities supporting production continuity and supply chain reliability
Frequently Asked Questions
What are electrical element supports?
Electrical element supports are ceramic components that hold heating elements in position while electrically isolating them from surrounding structures and assemblies.
Why are ceramics used for electrical element supports?
Ceramics provide a unique combination of electrical insulation, high-temperature resistance, thermal shock performance, and dimensional stability that metals and polymers cannot achieve in many heating applications.
What material is best for electrical element supports?
The best material depends on the application. Cordierite is commonly selected for thermal shock resistance, steatite for electrical insulation applications, and alumina for higher temperatures and increased mechanical loading.
Can Associated Ceramics manufacture custom electrical element supports?
Yes. We regularly manufacture custom geometries designed around customer drawings, performance requirements, and manufacturing considerations.
Can you support both prototype and production quantities?
Yes. Our engineering and manufacturing teams support projects from prototype development through high-volume production manufacturing.
Do you stock standard ceramic components?
Associated Ceramics manufactures a wide variety of standard ceramic components and maintains tooling for many common configurations. Depending on the application, existing inventory or tooling may be available to reduce lead times and accelerate production schedules.
Ready to Discuss Your Application?
Whether you're developing a new component, searching for a better supplier, or scaling an existing design into production, our engineers are ready to help.
